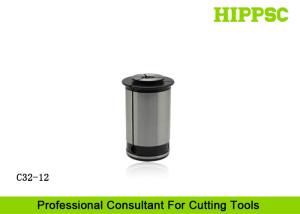

C Type Strong Power CNC Collet For Milling Machining And Chucks System
Ⅰ. Features And Advantages
- Runout <0.005mm, superior accuracy and stability.
- Good durability, antirust.
- Clamp drilling, tapping, Milling cutter and reamer.
- Straight shank design, offer very good clamp force.
Ⅱ. Technical Parametes
| Product Name | Straight shank Power Collet |
| Spindle Type | C32 |
| Clamping Range | (4,6,8,10,12,16,20,25) mm |
| Runout | < 0.005mm |
| Clamping tools | Drilling, tapping, milling cutter, reamer |
| Product Material | SKD61 |
| Hardness | HRC42°~45° |
| Taper Type | Straight |
Ⅲ. Product Introduction
Available Items
| Part Number | Clamp Range | D | L |
| C20 | (6 , 8, 10, 12, 16) mm | 26 | 55.1 |
| C25 | (6 , 8, 10, 12, 16, 20) mm | 30 | 63 |
| C32 | (6 , 8, 10, 12, 16, 20, 25)mm Metric (1/4, 5/16, 3/8, 1/2, 5/8, 3/4, 1) " Inch | 38 | 70 |
| C42 | (6 , 8, 10, 12, 16, 20, 25, 32)mm Metric (1/4, 5/16, 3/8, 1/2, 5/8, 3/4, 1, 1-1/4) " Inch | 48 | 75 |
Ⅳ. Overview for HIPPSC Products
CNC Straight Shank C Type Power Collet.
High Speed ER/SK/GER/GSK Tool Holder/Shank/Arbor for CNC Working.
Heat Shrink-Fit/Shrinking Tool Holders/Shanks/Arbors.
Threaded/Screw-on/Thread Screw Tool Holders/Arbors/Shank.
Back Lock/Side Lock Tool Holders/Arbors/Shanks.
Tool Holders/Arbors/Shanks for Mirror Finishing.
Morse Taper/Tapering Tool Holders/Shanks.
Face Milling Adapters/Tool Holders/Arbors/Shanks.
Drilling/Driller Chuck Holders/Tool Holders/Shanks/Arbor.
Torque Floating Tap/Tapping Chuck and Collet.
ER/SK/Hydraulic/Back lock/Floating tapping Collet
Torque/ Round/Circle Spanners/Wrenches/Keys.
ER/SK/Back lock/Shrink fit Extension Rod/ Tool bit.
Nuts/Pull stud/Bolt Blind rivet/Spindle taper wiper/Test bar/Tester.
Edge finder/Tool Holder Tightening Fixture/Table.
Inserts/PCD/Milling/Boring/PCBN Inserts/Blade/Cutters/Tool bit.
Quick Change Ball nose/Triangle/Pentagon/Horseshoe Tool bit.
Cutterhead/ Cutter heard/bar, face milling cutter.
BT/BBT/SK/CAT/HSK/ISO/NT Spinder Type Tool Holder/Shank/Arbor
Indexable Tools.
Ⅴ. Shipmen
By Sea; By Air; By Train/Truck.
TNT, EMS, DHL, UPS, FedEx.
Ⅵ. Packing
PE Bag.
Plastic Box
Carton Box.
Other Materials
Rust Presensitive Oil.
Adhesive Tape.
Packing Belt.
Ⅶ. Warehouse
Sufficient Inventory For All Standard Products to Guarantee On-time Delivery.
All Materials and Products Must Be Inspected and Checked Strictly and Carefully
By IQC and OQC Operater Before Being Shipped Out.
Using Special Equipment and Gauge To Check Technical Parameters.
Ⅷ. Manufacturing and Sales Service
Manufacturing with Professional and Precise Equipments Under Experienced Workers.
OEM and ODM Service Are All Available Here, Produce To Customer's Need/Requirement.
Professional Serving Team Provides One-Stop Considerate and Satisfying Service To You.
